Truenas Scale and OpenProject

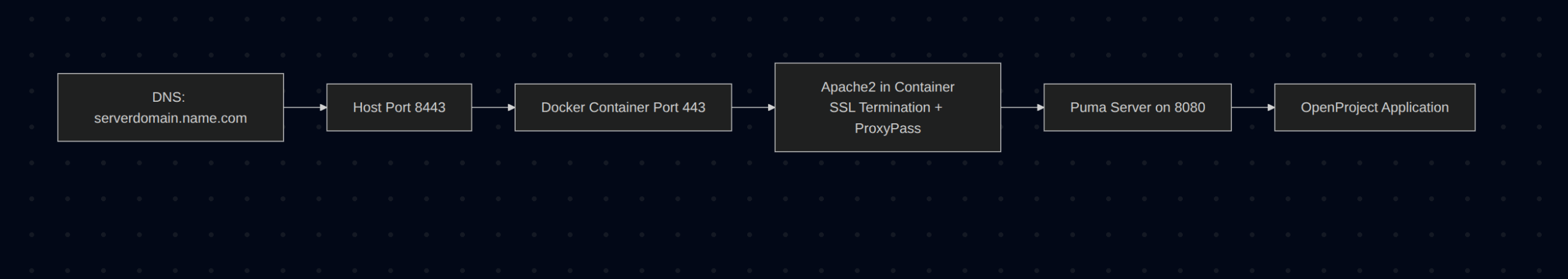

This guide walks you through installing OpenProject in a Docker container, configuring HTTPS with Certbot, and running it behind Apache with port forwarding (8443 → 443).

1. Prerequisites

Before starting, ensure you have:

• A working TrueNAS system (Scale or with Docker support).

• Docker and docker-compose installed on the TrueNAS host.

• A valid DNS record pointing serverdomain.name.com to your server’s public IP.

• Ports 80 and 443 accessible for initial certificate issuance.

• Access to the container shell for OpenProject.

2. Obtain an SSL Certificate using Certbot

We will use Certbot in standalone mode to get a certificate from Let’s Encrypt (or InCommon if your institution provides it). Not all users will need to use the eab-kid and eab-hmac-key for their services. This is just a potential set of items for usage.

apt-get update && apt-get install -y certbot python3-certbot-apache
certbot certonly \
  --standalone \
  --non-interactive \
  --agree-tos \
  --email yo*@*****le.edu \
  --server https://acme.sectigo.com/v2/InCommonRSAOV \
  --eab-kid "<your-kid>" \
  --eab-hmac-key "<your-hmac-key>" \
  --domain serverdomain.name.com \
  --cert-name serverdomain

Note: Replace:

• yo*@*****le.edu with your email

• serverdomain.name.com with your server’s domain

• <your-kid> and <your-hmac-key> with your ACME credentials

When complete, your certificates will be stored in:

3. Configure Apache in the OpenProject Container

Create or edit the file:

Paste the configuration:

<VirtualHost *:443>
    ServerName serverdomain.name.com:8443
    ServerAlias serverdomain.name.com
    DocumentRoot /app/public

    SSLEngine on
    SSLCertificateFile /etc/letsencrypt/live/serverdomain.name.com/fullchain.pem
    SSLCertificateKeyFile /etc/letsencrypt/live/serverdomain.name.com/privkey.pem

    ProxyRequests Off
    ProxyPreserveHost On

    # Tell the backend we're on HTTPS and the external port is 8443
    RequestHeader set X-Forwarded-Proto "https"
    RequestHeader set X-Forwarded-Ssl "on"
    RequestHeader set X-Forwarded-Port "8443"

    # Reverse proxy to Puma on 8080
    ProxyPass        / http://127.0.0.1:8080/ retry=0
    ProxyPassReverse / http://127.0.0.1:8080/

    # Optional: Fix cookies and absolute Location headers
    ProxyPassReverseCookieDomain 127.0.0.1 serverdomain.name.com
    ProxyPassReverseCookiePath / /

    # Logs
    ErrorLog  ${APACHE_LOG_DIR}/openproject-error.log
    CustomLog ${APACHE_LOG_DIR}/openproject-access.log combined
</VirtualHost>

Enable required Apache modules inside the container:

a2enmod ssl proxy proxy_http headers rewrite
apache2ctl -t && apache2ctl graceful

4. Commit and Tag Your Container

Once the configuration is tested and working inside your running container:

This creates a saved image with your changes and a latest tag for easy redeploys.

5. Prepare Persistent Volumes for Data

On your TrueNAS system, create directories for OpenProject’s persistent data:

These will be mounted into the container for database storage and file uploads.

6. Update TrueNAS to Use the New Container

In your TrueNAS Apps configuration:

• Change the image to:

  yourusername/openproject:latest


• Map:

  • /mnt/tank/openproject/pgdata → /var/lib/postgresql/data

  • /mnt/tank/openproject/assets → /app/assets

• Forward port 8443 on the host → 443 in the container.

• Keep port 8080 internally for Puma.

7. Start the Updated Container

Once changes are saved, deploy the container from TrueNAS.
Visit:

You should see your OpenProject instance running over HTTPS.

8. Maintenance & Renewal

To renew your SSL certificate:

You can automate this renewal using a cron job.

Summary

You have:

• Obtained and installed an SSL certificate via Certbot.

• Configured Apache inside the OpenProject container with HTTPS and reverse proxying.

• Committed your working container to a custom Docker image.

• Set up persistent storage for PostgreSQL and assets.

• Updated your TrueNAS app configuration to use the new image and port mapping.
